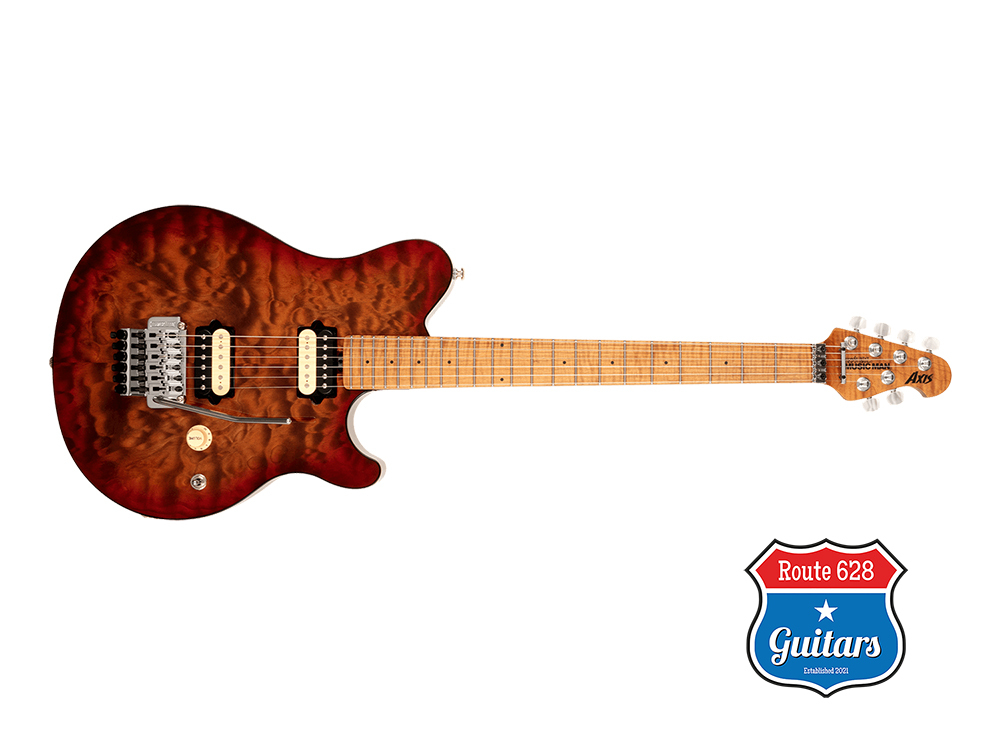

Music Man Axis

The Axis guitar is offered with a roasted, figured maple neck, 22 stainless steel frets, and 2 exciting new finishes: Yucatan Blue and Roasted Amber. The guitar retains the features that have made it a classic such as the ever-comfortable asymmetric neck shape, double-locking tremolo, and custom DiMarzio humbuckers. Available with your choice of flame or quilt maple top over a basswood body, this tonewood/pickup combination is a perfect recipe for hard edge rock tones but also delivers a subtle dynamic response at lower volume levels when needed.

Specifications Axis

Model Axis

Size 12-5/8" wide, 1-3/4" thick, 36-1/4" long (32.1 cm wide, 4.5 cm thick, 92.0 cm long)

Body Wood Basswood with bookmatched figured maple top

Body Finish High gloss polyester

Body Colour Roasted Amber Quilt

Body Bindings Binding - Cream

Bridge Music Man® double locking tremolo with fine tuners; lowers pitch only

Scale Length 25-1/2" (64.8 cm)

Neck Radius 10" (25.4 cm)

Headstock Size Only 5-7/8" (14.9 cm) long

Frets 22 - High profile, medium width stainless steel

Neck Width 1-5/8" (41.3 mm) at nut, 2-3/16" (55.6 mm) at last fret

Neck Wood Roasted Maple

Fingerboard Figured Roasted Maple

Neck Finish Gunstock oil and hand-rubbed special wax blend

Neck Colour Roasted Maple

Tuning Machines Schaller M6LA with pearl buttons

Truss Rod Adjustable - no component or string removal

Neck Attachment 5 bolts - Sculpted neck joint allows smooth access to higher frets

Electronic Shielding Graphite acrylic resin coated body cavity and aluminum lined control cover

Controls 500kohm volume pot

Switching 3-way toggle pickup selector

Pickups HH - 2 DiMarzio custom humbucking

Strings 9p-11p-16p-24w-32w-42w (RPS 9 Slinkys #2239)

Build Code 300-RA-R1-00
